Fractal Design Meshify 2 Compact Dark Cabinet (Black)

12,590.00

  • SERIES MESHIFY SERIES
  • TYPE MID TOWER
  • 3.5″ BAYS 2
  • 2.5″ BAYS 2
  • EXPANSION SLOTS 7
  • MAX RADIATOR SUPPORT 360
  • MAX FAN SUPPORT 7
  • COLOR BLACK
  • SIDE PANEL TRANSPARENT
  • MOTHERBOARD SUPPORT ATX
  • WARRANTY 2 Years

In stock

SKU: FD-C-MES2C-02 Categories: , Tags: , , , ,

Description

Features

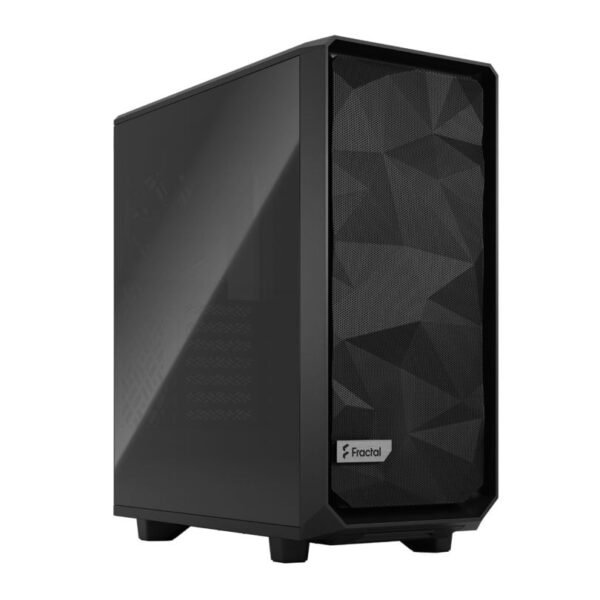

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port.

  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
  • Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

Removable front filter

  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
  • New front nylon filter that can be removed for increased airflow

Robust cooling

  • Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
  • Open interior layout creates a smooth airflow path from intake to exhaust
  • Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured

  • Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
  • Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
  • Improved cable routing with three integrated cable alignment clips and six velcro straps

Top priority access

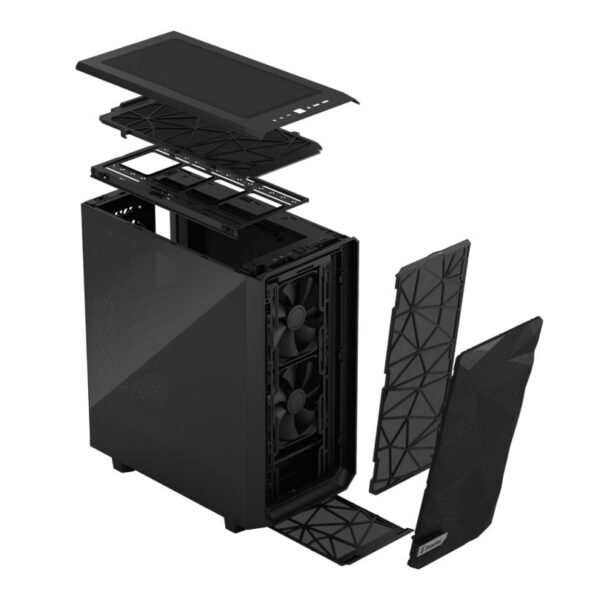

The fully removable top panel opens to provide excellent interior access

Spaciously compact

Clever layout enables the capacity of much larger cases

Type-C interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Smooth and quiet operation

The sturdy steel drive trays are vibration-damped by cushioning rubber grommets

Full length shroud

A full-length power supply shroud readily conceals the drive cage and excess cabling

Specifications

3.5″/2.5″ Universal drive mounts 2 (included)
Dedicated 2.5″ drive mounts 4 (2 included)
Expansion Slots 7
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
Total fan mounts 7x 120 or 4x 140 mm and 2x 120 mm
Front fan 3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included)
Top fan 2x 120/140 mm
Rear fan 1x 120 mm, (1x Dynamic X2 GP-12 included)
Bottom fan 1x 120 mm (requires removal of HDD cage)
Dust filters Top, front and bottom
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD, SSD and PSU brackets
Left side panel
Tempered Glass
Right side panel Steel
Motherboard compatibility ATX / mATX / Mini-ITX
Power supply type ATX
PSU max lengthq 200 mm (165 mm with HDD cage and front fan)
GPU max length 341 mm (360 mm without front fan)
CPU cooler max height
169 mm
Front radiator Up to 360/280 mm
Top radiator Up to 240 mm
Rear radiator 120 mm
Bottom radiator 120 mm (requires removal of HDD cage)
Cable routing space 17-28 mm
Radiator Support – Additional Details Maximum radiator width: 145 mm. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.
Case dimensions (LxWxH) 424 x 210 x 475 mm
Case dimensions w/o feet/protrusions/screws 412 x 210 x 455 mm
Package dimensions (LxWxH) 542 x 320 x 554 mm
Net weight 7.7 kg
Gross weight 9.3 kg
Volume 39.4 Liters
Package contents Meshify 2 Compact Case, User manual, Accessory box
Warranty 2 Years
Note *** Features, Price, Specifications are subject to change without notice.
