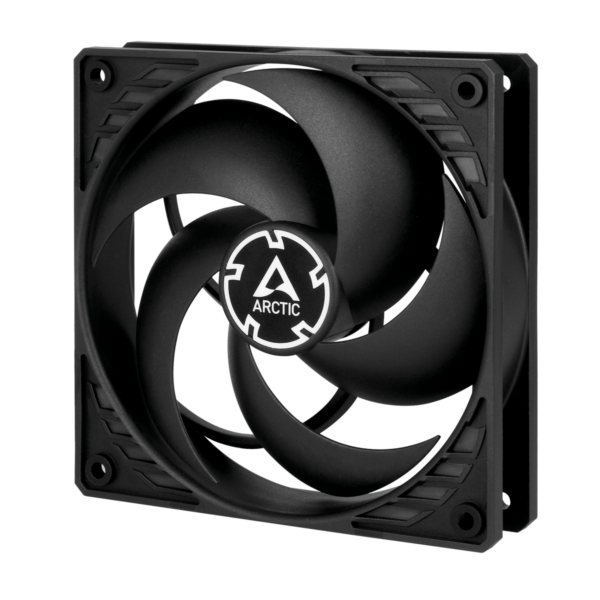

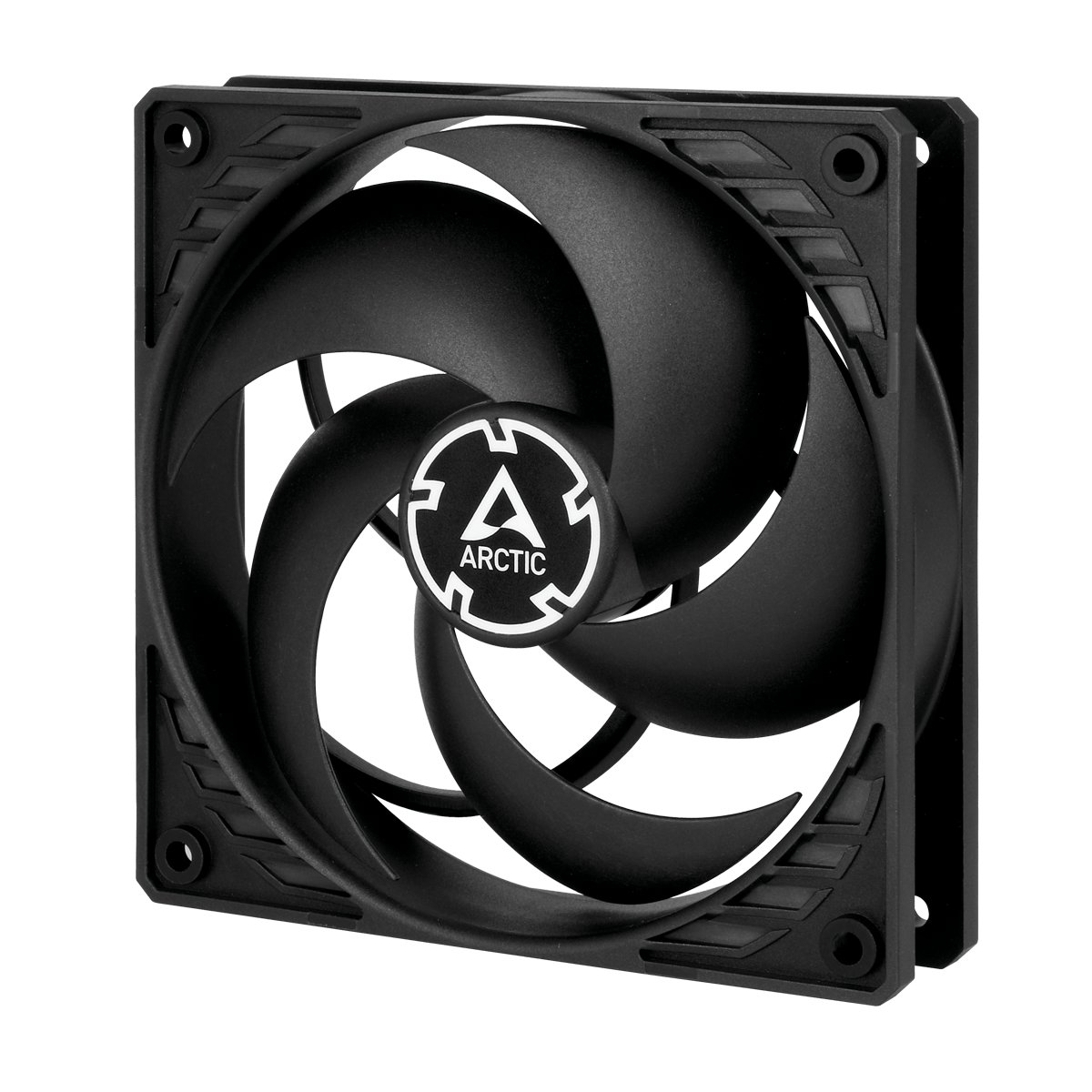

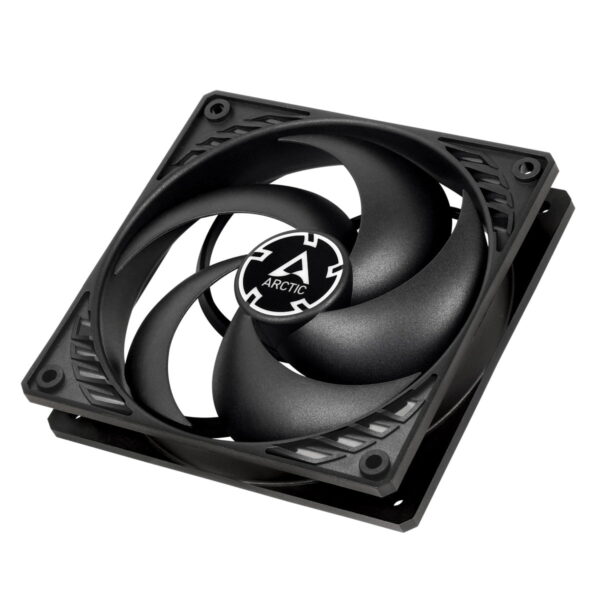

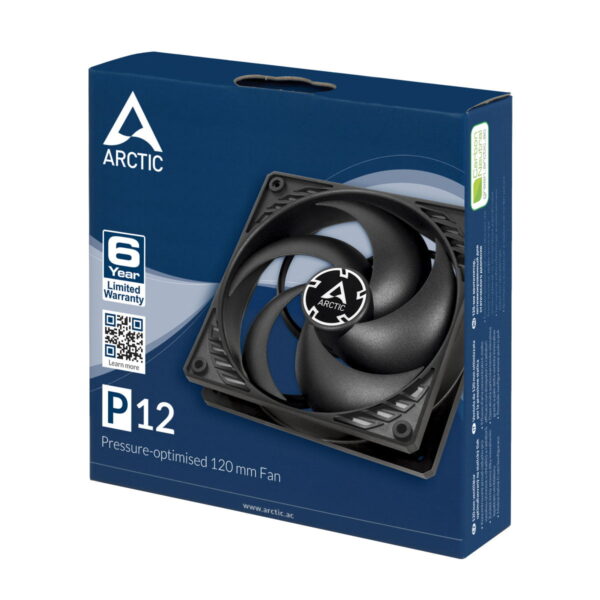

Arctic P12 Cabinet Fan (Single Pack)


  • Size 120 mm
  • Pack Single

Out of stock

SKU: ACFAN00118A Categories: , Tags: , , ,



Optimised for Static Pressure

During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.

Strong Cooling Performance

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans.

In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

Push warm air out of the case

Pull cool air into your case


Fan Speed 1800 rpm
Airflow 56.3 CFM/ 95.7 m³/h
Static Pressure 2.20 mm H₂O
Noise Level 0.3 Sone
Operating Ambient Temperature 0 – 40 °C
Fan Frame Standard
Control Type Fixed Speed
Connector 3-Pin-Connector
Fan Bearing Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage 12 V DC
Starting Voltage 2.8 V
Current/ Voltage 0.20 A / 12 V
Cable Lenght 400 mm
Size & Weight
Length 120 mm
Width 120 mm
Height 25 mm
Weight 139 g
Warranty 6  Years
Note *** Features, Price, Specifications are subject to change without notice.
