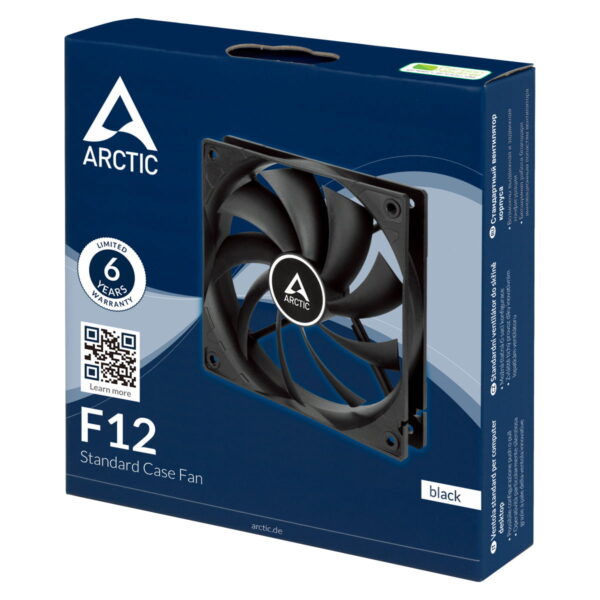

Arctic F12 Cabinet Fan (Single Pack)


  • Size 120 mm
  • Pack Single

Out of stock

SKU: ACFAN00201A Categories: , Tags: , ,



Long Service Life

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

Innovative Design Enables Quiet and Efficient Ventilation

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

Two Way installation

Blow warm air out of the case

Draw cool air into your case


Fan Speed 1350 rpm
Airflow 53 CFM/ 90.1 m³/h
Static Pressure 1.00 mm H₂O
Noise Level 0.3 Sone
Operating Ambient Temperature 0 – 40 °C
Fan Frame Standard
Control Type Fixed Speed
Connector 3-Pin-Connector
Fan Bearing Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage 12 V DC
Starting Voltage 2.7 V
Current/ Voltage 0.12 A / 12 V
Cable Lenght 400 mm
Size & Weight
Length 120 mm
Width 120 mm
Height 25 mm
Weight 107 g
Warranty  6 Years
Note *** Features, Price, Specifications are subject to change without notice.
