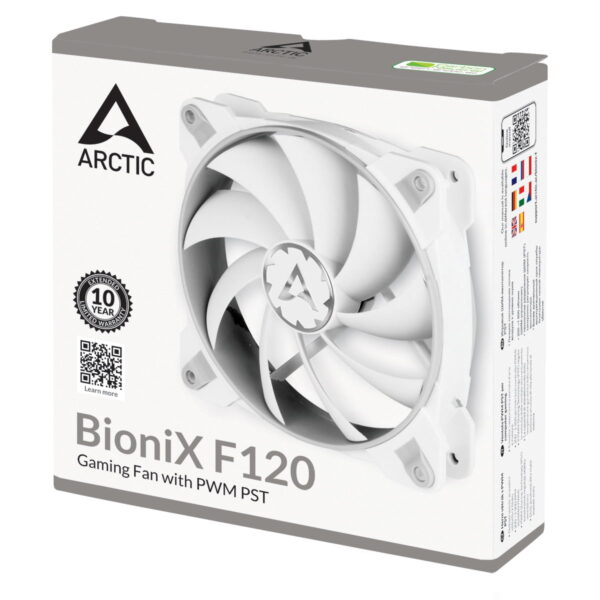

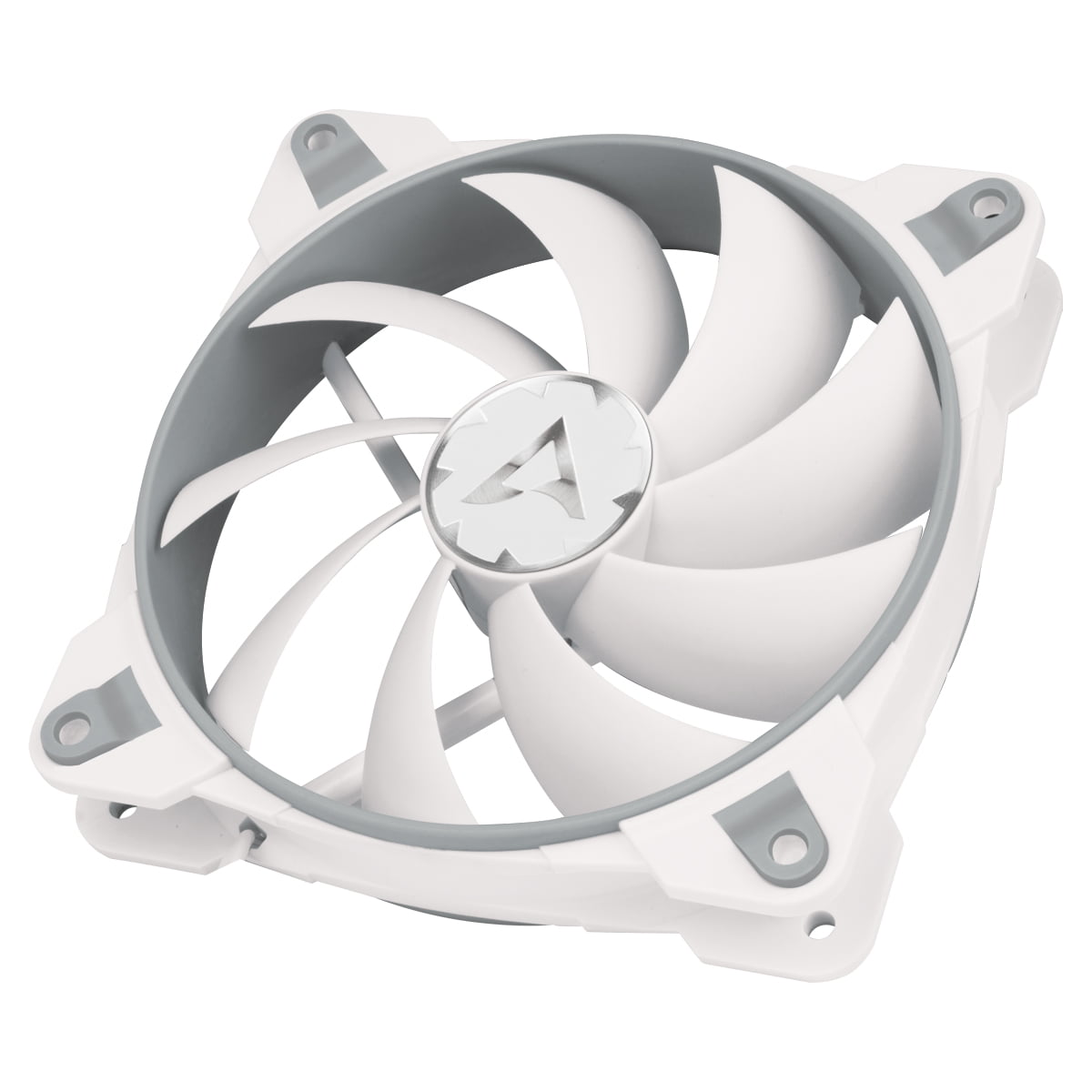

Arctic BioniX F120 Cabinet Fan (Single Pack)


  • Size 120 mm
  • Pack Single

Out of stock

SKU: ACFAN00164A Categories: , Tags: , ,



Extended Life Span

10 °C lower motor temperature doubles the life span. The BioniX gaming fans have a four times longer service life through low coil temperature.

Maximum Quietness, Minimum Vibration

Extremely quiet operation through a newly developed motor guarantees long sessions without annoying noise. ARCTIC’s new motor of the BioniX Fans eliminates vibrations directly at its source, in particular at the motor. The ARCTIC motor absorbs 95 % of vibrations compared to a conventional DC motor. Thus, there is no need for rubber spacers due to the steady torque and smoother switching of the magnet field.

200 to 1800 RPM

With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX F120 fan speed can be controlled synchronously with all your other fans together and thus keep the noise at a minimum while guaranteeing maximum cooling performance when needed.

Optimised Fan Design

We further optimised the fan blade design to get a higher airflow at lower noise generation. This guarantees high pressure and highly efficient ventilation for your gaming case.

Enhanced Bearing

Due to a new alloy/lubricant combination developed in Germany, the friction within the bearing is reduced and a greater efficiency is achieved. This way, there is less heat development as well as less bearing noise and you can enjoy a longer service life of your cooler.

Two Way Installation

Blow warm air out of the case

Draw cool air into your case


Fan Speed 200 – 1800 rpm
Airflow 69 CFM/ 117 m³/h
Static Pressure 2.10 mm H₂O
Noise Level 0.5 Sone
Operating Ambient Temperature 0 – 40 °C
Fan Frame BioniX
Control Type PWM PST
Connector 4-Pin-Connector + 4-Pin-Socket
Fan Bearing Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage 12 V DC
Starting Voltage 4.8 V
Current/ Voltage 0.20 A / 12 V
Cable Lenght 400 mm
Size & Weight
Length 120 mm
Width 120 mm
Height 15 mm
Weight 129 g
Warranty  6 Years
Note *** Features, Price, Specifications are subject to change without notice.
